Our monster RM1610 PRO (non-metal cutting) laser cutter/engraver is a fully enclosed laser cutter and engraver.This machine is currently our largest machine boasting a incredible 63" x 39" work area with passthrough.
The easy-to-use DSP control system is compatible with either PC & Mac* via USB, Network or Wi-Fi access point.
*The optional LightBurn software is required for use with Mac.
Equipped with a high quality, long life RECI W4 120W laser tube or optional RECI W6 150W, can cut through most of what you’ll probably want to, while still having the precision and control to etch a completely legible sentence onto an area the size of your thumbnail!
All Co2 lasers come standard with electronic bed height control, dual air assist for engraving and cutting, and internal LED lighting.
Being compliant with Electrical (Safety) Regulations, these machines and accessories are 100% safe for use in the classroom, home or industrial environment, the cabinet & doors are all lockable and fully earth bonded, have built in RCD devices and operate off a standard single phase, 110V power outlet.
DSP LIGHTBURN license included with purchase of machine
Suitable materials for cutting or etching:
- Paper/card stock
- Plywood / MDF
- Leather / Felt / Rubber
- Acrylic
- Glass/Stone (engrave only)
-Natural and textile fabrics
Many more
- 1 x 120W RECI W4 laser cutter with honey comb& slat beds sized to 62.99" x 39.37" /1600x1000mm
- Optional RECI W6 150W

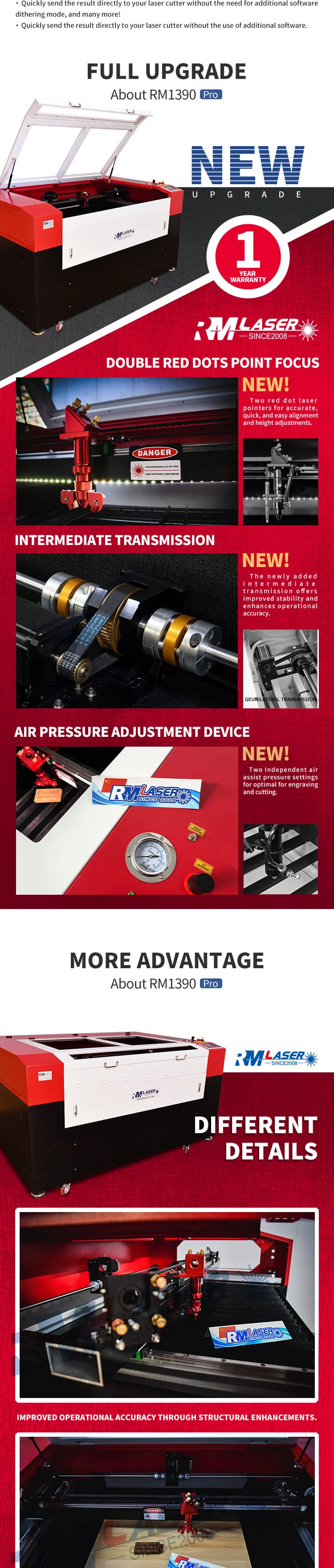

- Dual red dot point focusing system
- 1 x Exhaust extraction fan (Easy-fit hoses included)
- Simple and powerful laser processing software – RDworks
- Connect PC to Laser via Ethernet , USB or optional Wifi
- 1 x Toolkit containing maintenance and servicing tools.
- 1x Genuine S&A CW5200 Refrigerated Chiller - - 1 x Spare RECI W4 or W6 laser tube depending on selected option
Machine Specifications
-2.5” lens standard , optional 4” lens
-62.99" x 39.37" bed size
-120w reci W4 laser tube
-9.85" max Z-height
-1000 mm/s max engraving speed
-700 mm/s max cutting speed
-optional wifi
-optional rotary attachment
-optional lightburn camera
-Dimensions (LXWXH) 85.82"x 58.66"x 43.30"
-Weight 629kgs
Your Workshop Requirements:
- Power: 110V outlet
- Default RD Works Software Included – Windows PC
- Optional LightBurn Software – Win/Mac/Linux PC
- Air Compressor - We Recommend a Silenced Air Compressor Minimum 50L
- Ventilation Port for exhaust (6") 150mm Diameter
NOTE: This product can take 6-8 weeks to be shipped , if not in stock at Ontario warehouse, please contact for availability prior to purchase.
